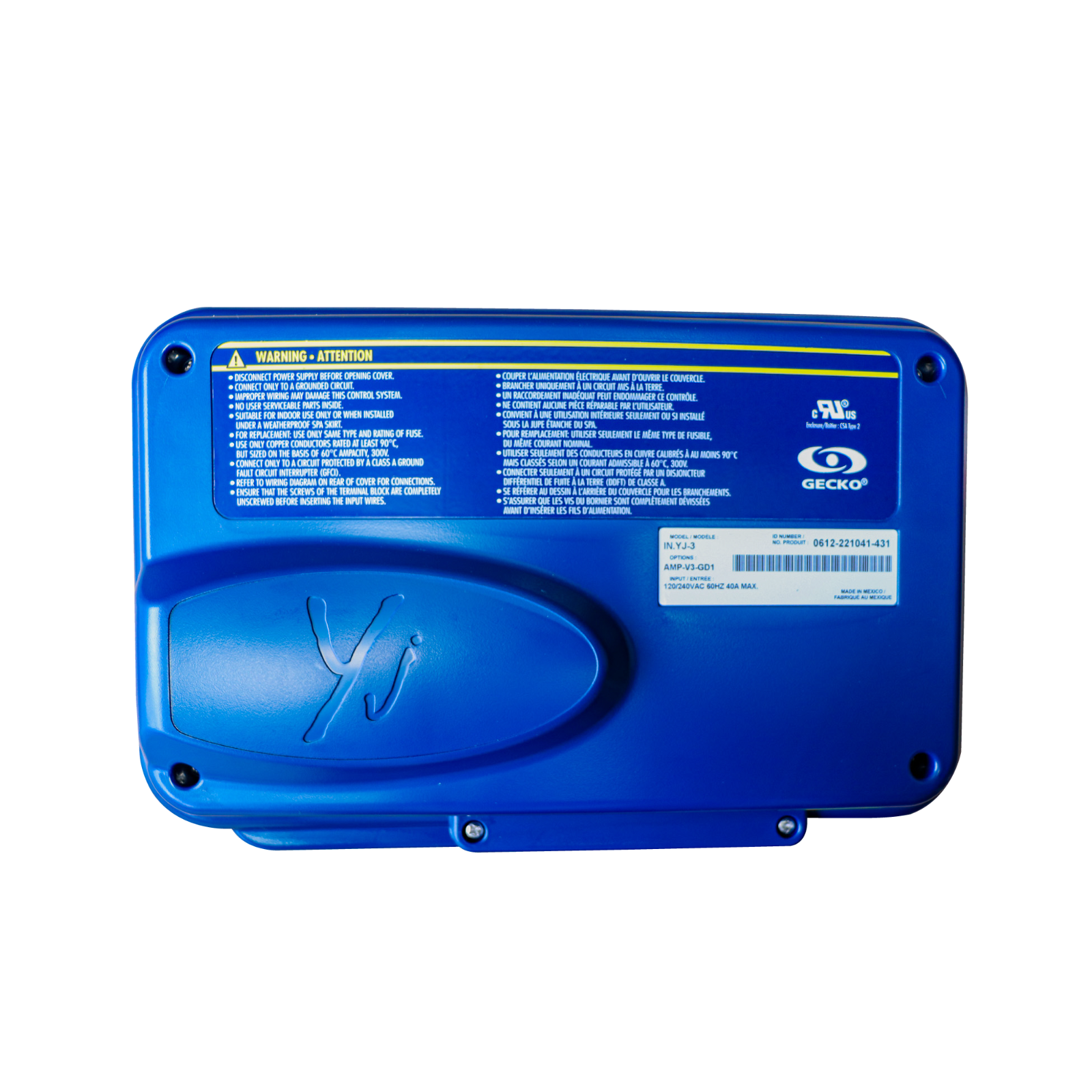

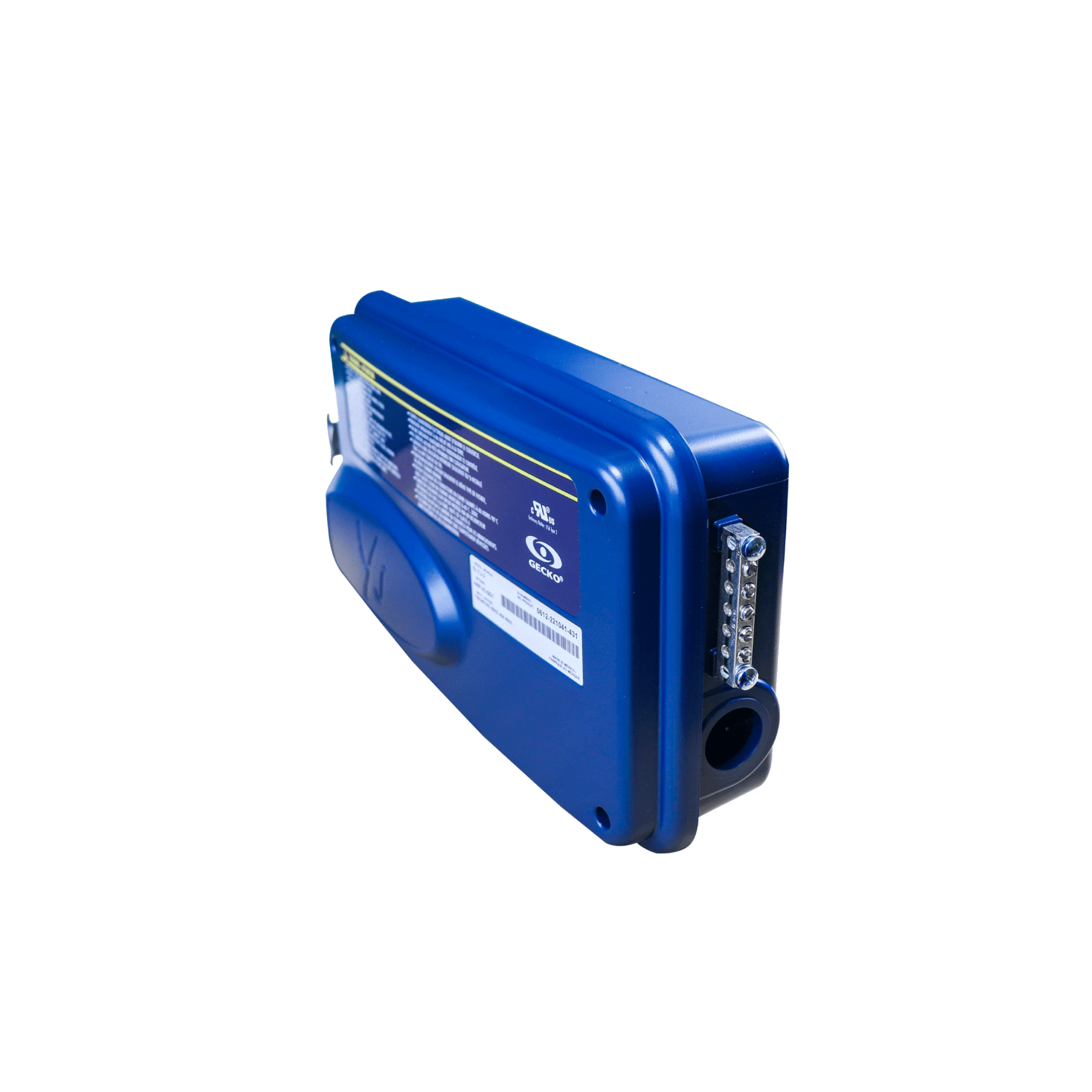

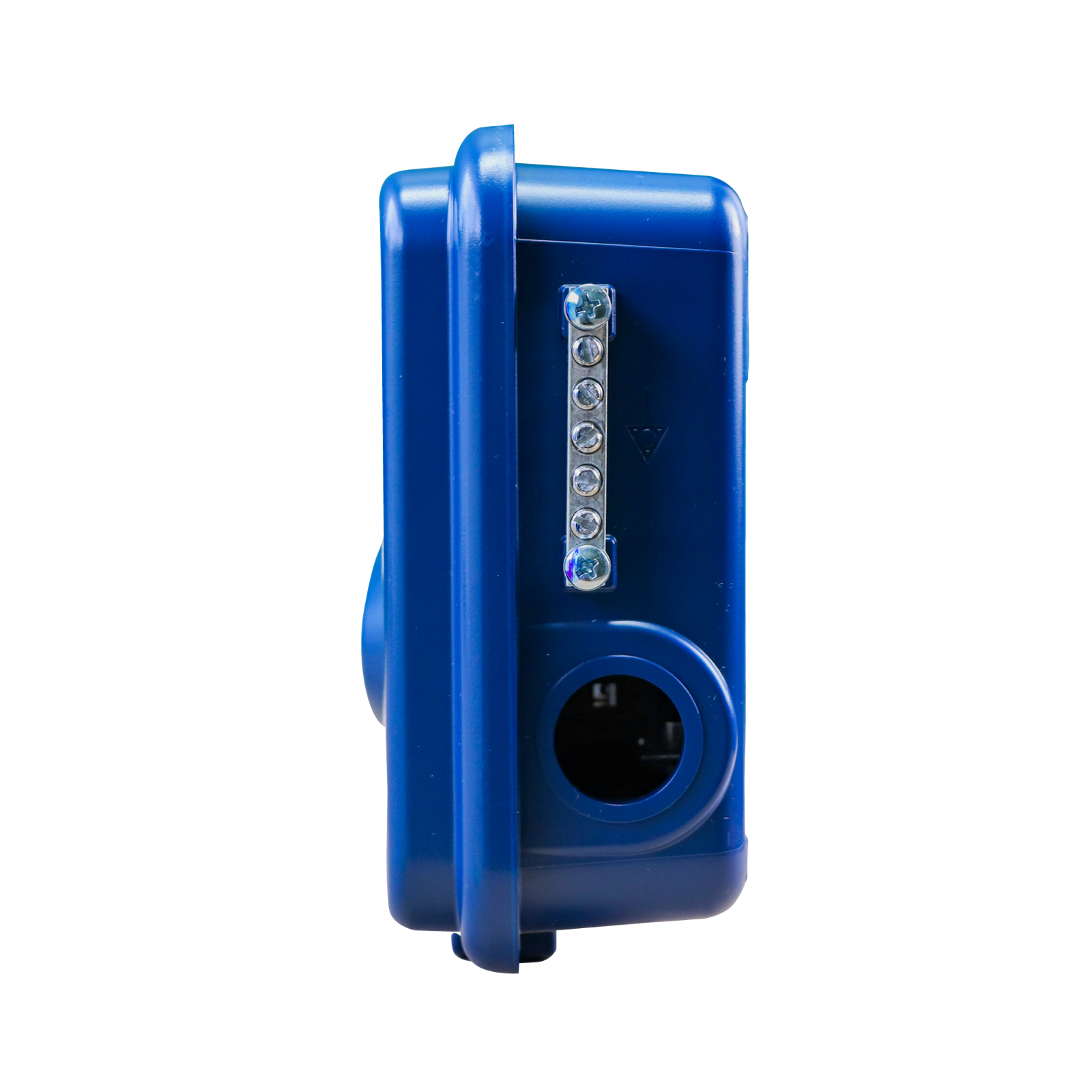

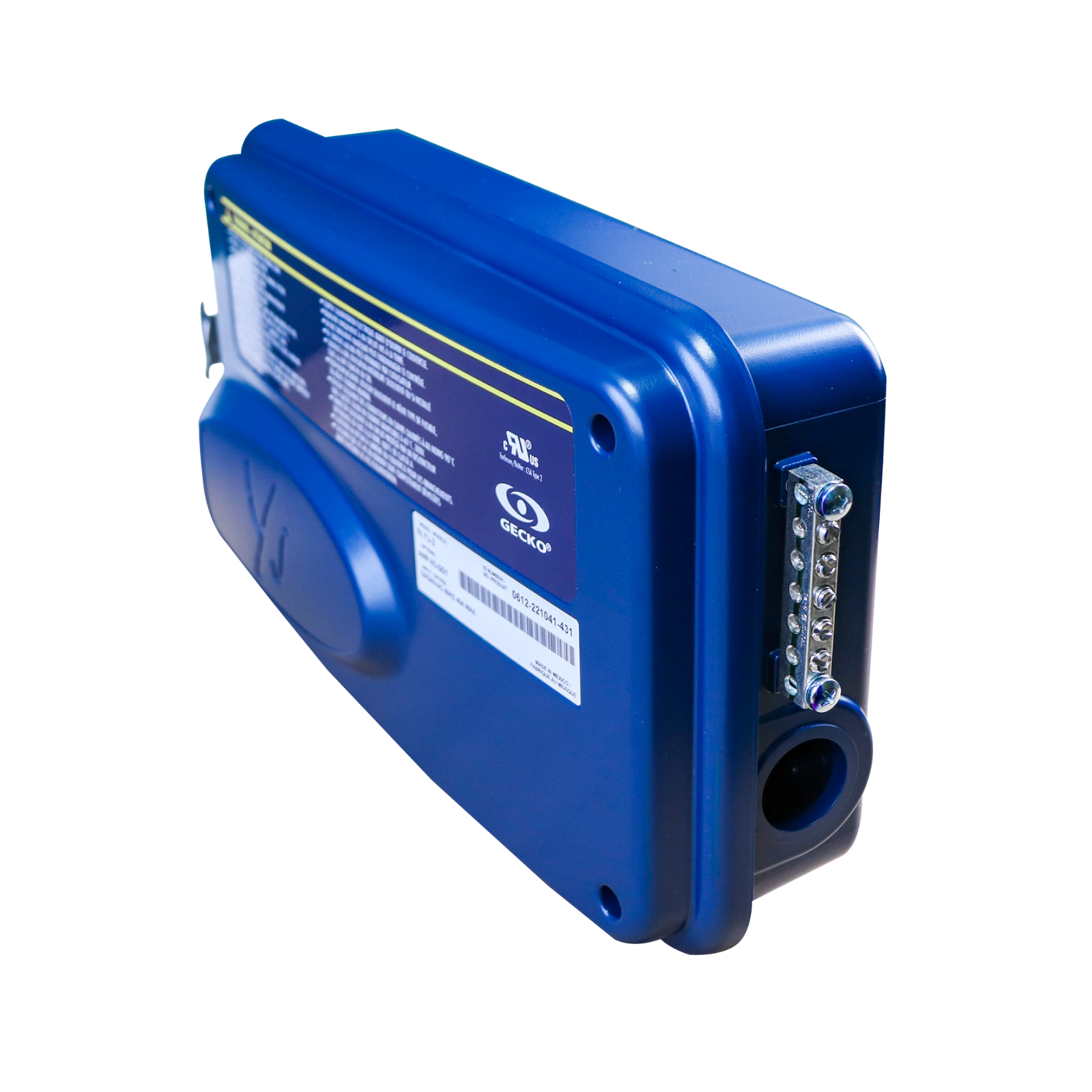

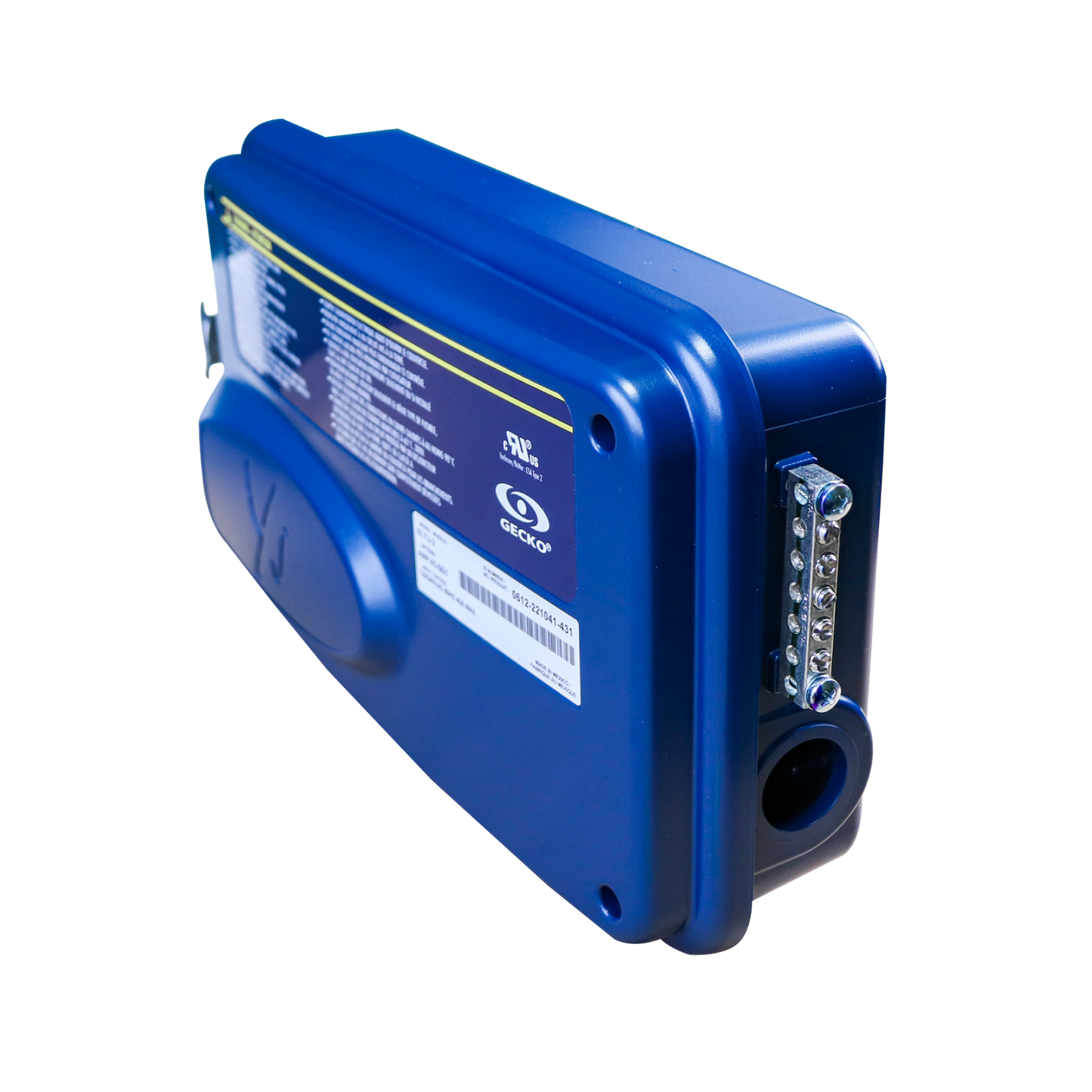

Gecko in.yj-V3 Spa Pack Control Box Only

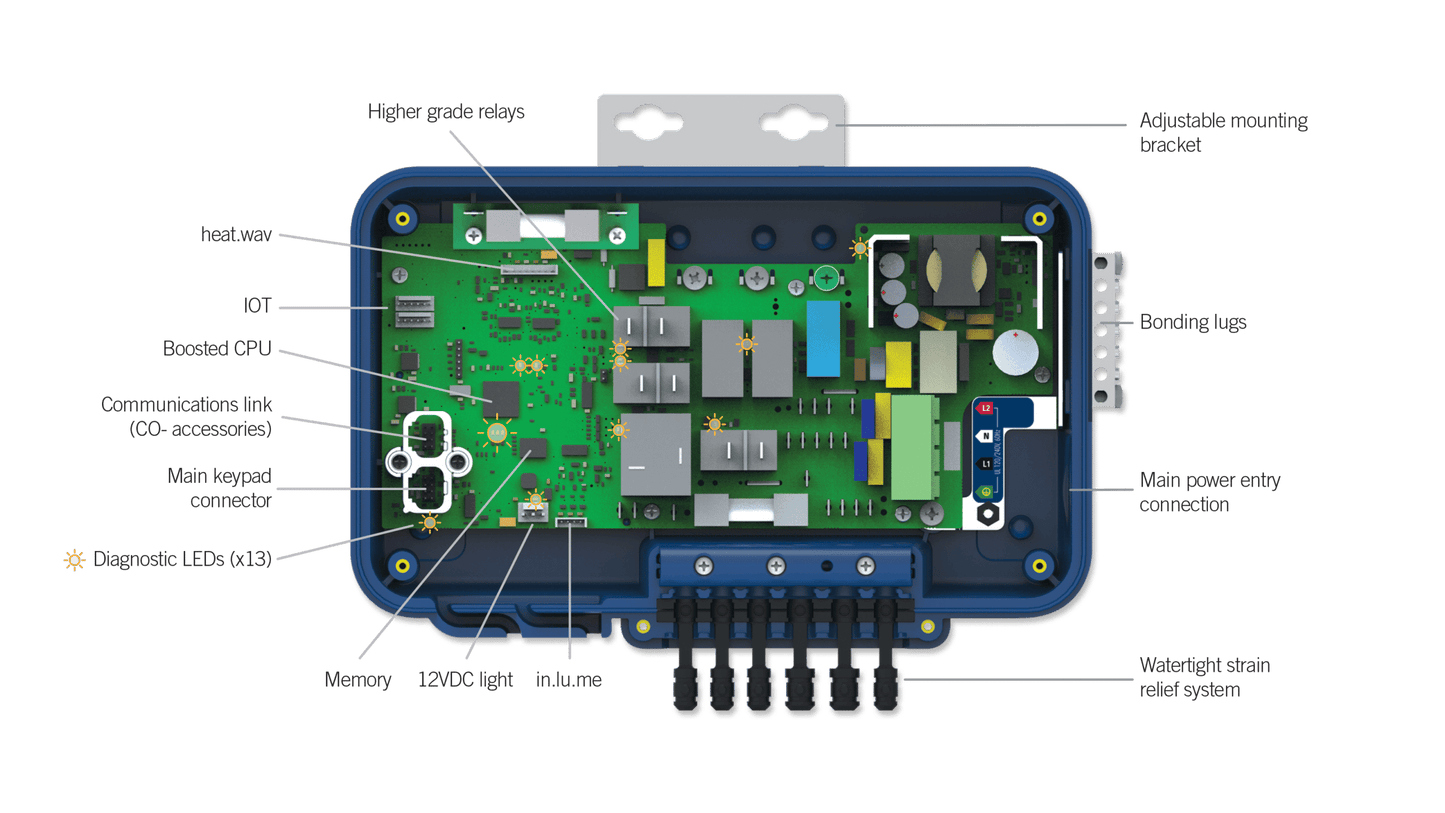

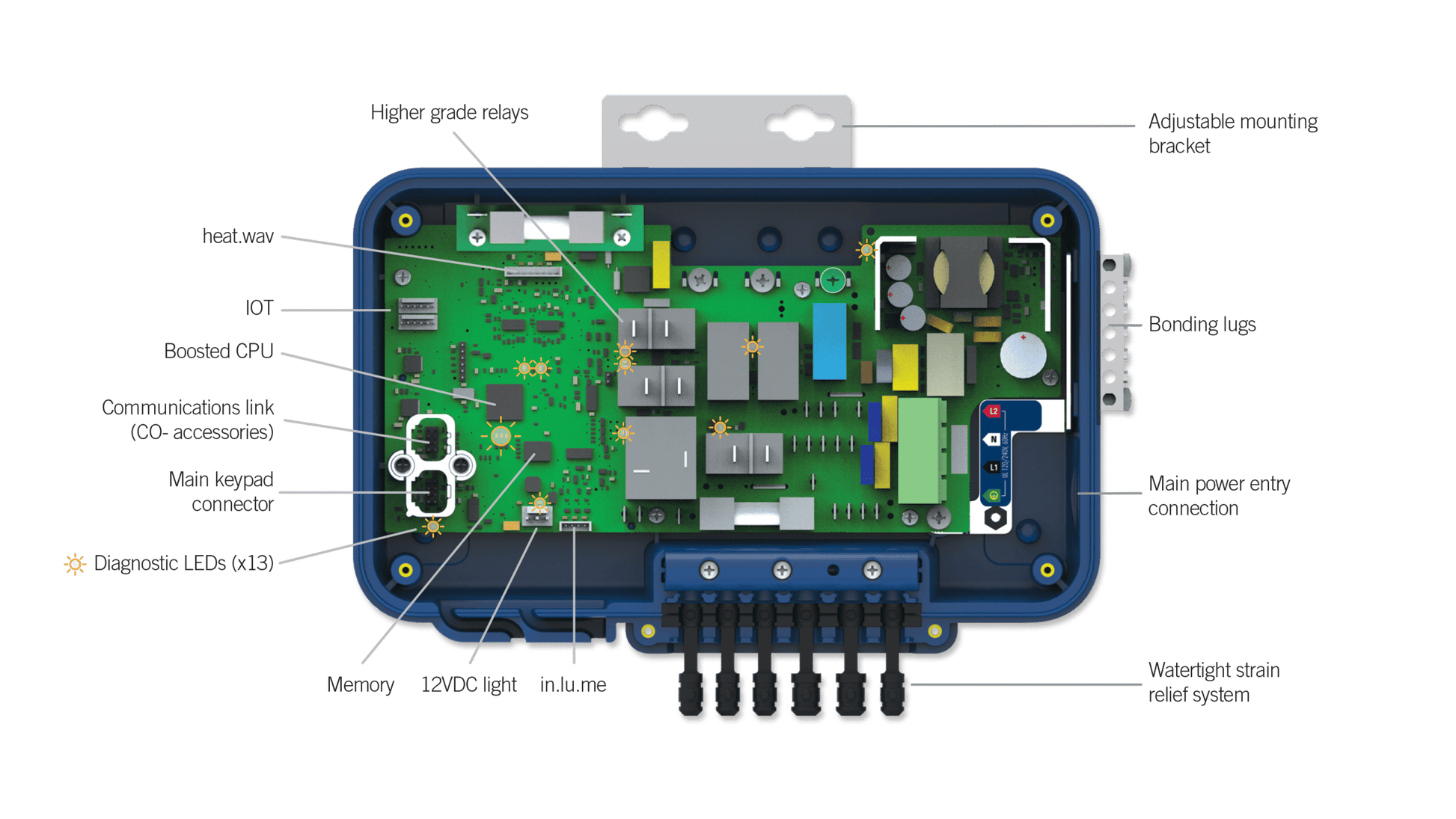

The in.yj-V3 is a modular control system that separates the control pack from the heating element, which improves integration in tight spaces. The in.yj-V3 should be paired with heat.wav heaters.

Gecko IN.YJ-3-QC-V3-GD1 electronic control system 0612-221041-431 (less heater)

• 0612-221041-431
• Replacement for Balboa VS100 & RS101 systems
• Input rating • 120/240 V, 60 Hz (2 lines with/ neutral) 40 A Max.
• Main Circuit - 2-Speed Pump 15A 120/240V
• 2nd Circuit - 1-Speed Blower or Pump 15A 120/240V
• 3rd Circuit - O3 (The ozonator is connected in parallel with the Pump 1(Main Circuit) low speed, therefore they cannot be controlled independently)
• Direct out 1 - 5A(always on) 120/240V
• Light output - 1A(12W bulb)
• compatible with the 4kW heat.wav heater 0613-421009 (sold separately)
