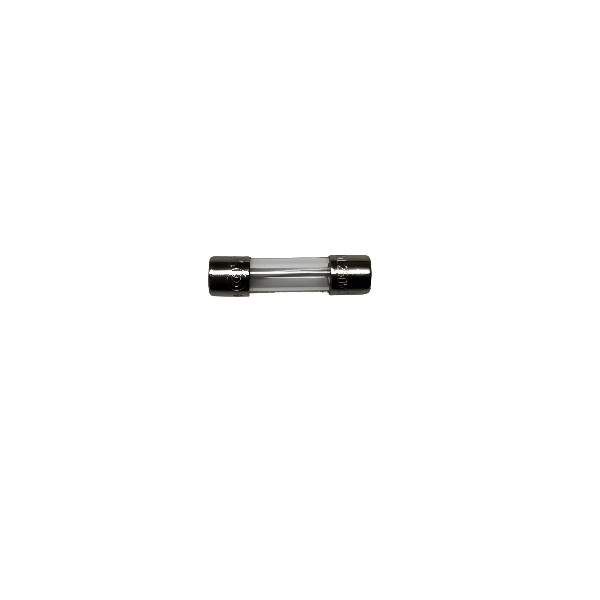

Fuse - F6 - BP501 Control Pack

• Glass Fuse
• 250 V
• F6 position
• fits BP501

When there is power going to the audio system, but the main topside remains off, the F6 fuse may be blown. This may happen on new installations when putting hot into neutral terminal by mistake.

To confirm if there is power to the audio system, simply press the power button on the small round audio topside next to the main topside and if it lights up, then you have confirmed there is power to the audio system.

For new electrical installations, if the Red and Black (which is 240V between them) supply feeds are connected to terminal block positions 1 and 2, this may blow the F6 fuse as it feeds 240V to a transformer expecting only 120V. This will cause the Topside Control to remain blank when power is applied to the Control Pack. For existing installations, the F6 Fuse can also get blown as a result of power surges, power outages, etc.
